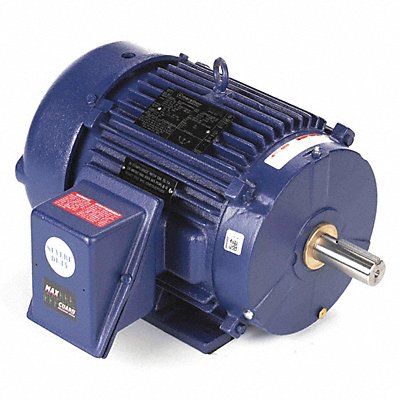

IEEE 841 Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 768 No of Speeds 1 Voltage 460V AC Full Load Amps 9.5 213T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 213THFCD9026
| Item Reference | 482P68 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 222 |
| Length (in) | 26.5 |
| Width (in) | 18 |
| Height (in) | 14.38 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
