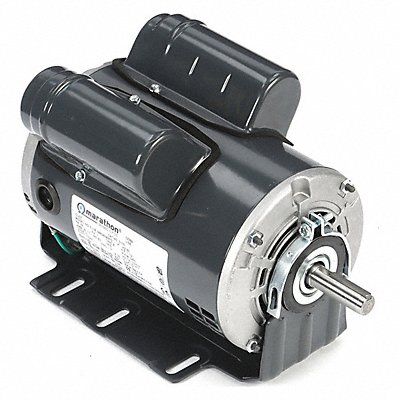

General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 13.0/7.4-6.5 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection Auto Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base Motor Mounting Position Horizontal
Mfr 056B34D2027
| Item Reference | 46N393 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 27.3 |
| Length (in) | 14 |
| Width (in) | 8.3 |
| Height (in) | 9.5 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
