| Item Reference | 46N385 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 21.25 |
| Length (in) | 14 |
| Width (in) | 7.6 |
| Height (in) | 10.1 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

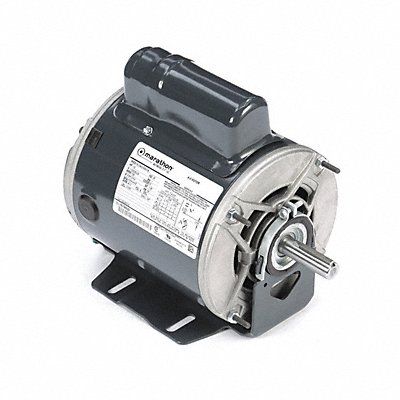

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 8.8/4.4-4.2 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base Motor Mounting Position All Angle
Mfr 5KC49GN0001
