| Item Reference | 24ME90 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 41.05 |
| Length (in) | 15.1 |
| Width (in) | 10.2 |
| Height (in) | 11.2 |
| Harmonization Code | 8501524000 |
| Country of Origin | China |

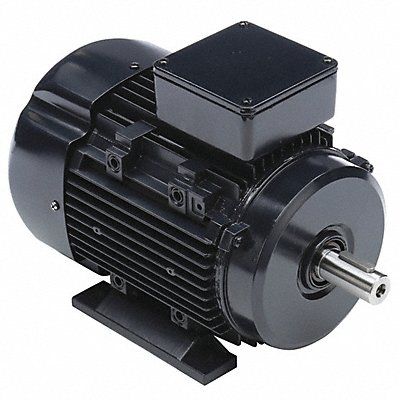

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.2/3.6 90L Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
