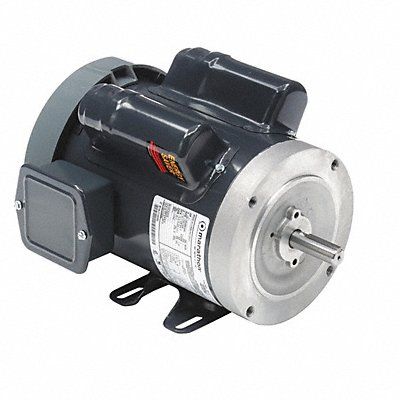

General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 11.8-11.4/5.9-5.7 56C Frame Usable @ 208V Yes Usable @ 200V Yes Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection Auto Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position All Angle
Mfr 5KCR49UN0106X
| Item Reference | 1K135 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 38.8 |
| Length (in) | 15.7 |
| Width (in) | 10.5 |
| Height (in) | 10 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
