| Item Reference | 19YU99 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 30.06 |
| Length (in) | 16.5 |
| Width (in) | 10.7 |
| Height (in) | 9.9 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

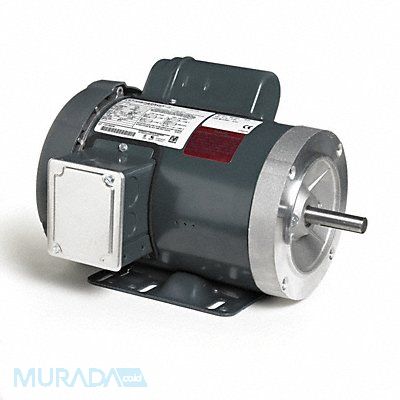

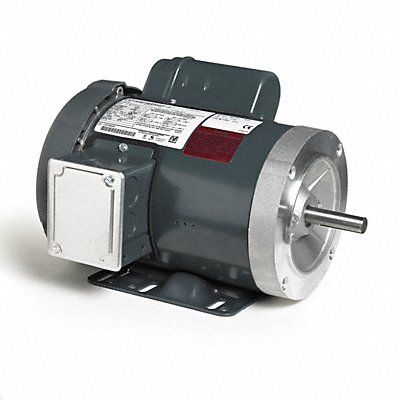

General Purpose Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 11.2/5.7-5.6 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal
Mfr 056C34F5303
