| Item Reference | 19RX69 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 400 |
| Length (in) | 31.25 |
| Width (in) | 22.25 |
| Height (in) | 18 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

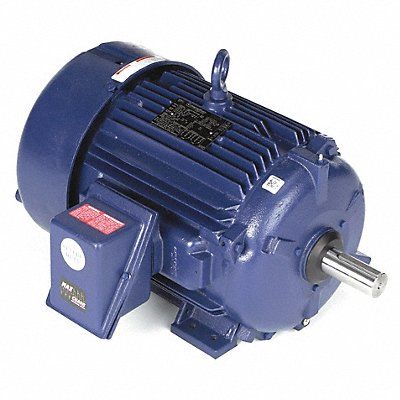

Severe Duty Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 768 No of Speeds 1 Voltage 230/460V AC Full Load Amps 48.5/24.2 256T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 256TTFCD6529
