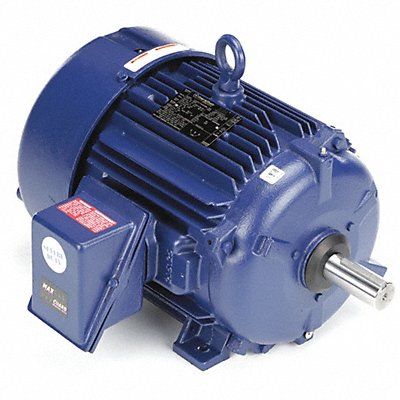

Severe Duty Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 3 545 No of Speeds 1 Voltage 460V AC Full Load Amps 17.8 254T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 254TTFCD6501
| Item Reference | 19RX58 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 322 |
| Length (in) | 32 |
| Width (in) | 23 |
| Height (in) | 21 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
