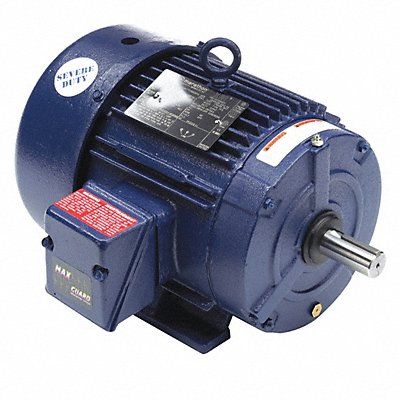

Severe Duty Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 460V AC Full Load Amps 6.2 184T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 184TTFCD6526
| Item Reference | 19RX27 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 120 |
| Length (in) | 22.2 |
| Width (in) | 17.3 |
| Height (in) | 14.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
