| Item Reference | 19RX24 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 147 |
| Length (in) | 22.6 |
| Width (in) | 17.2 |
| Height (in) | 14.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

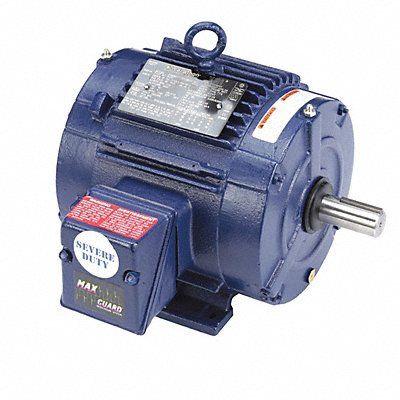

Severe Duty Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.8/3.9 182T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Nonventilated Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 182TTTCD6538
