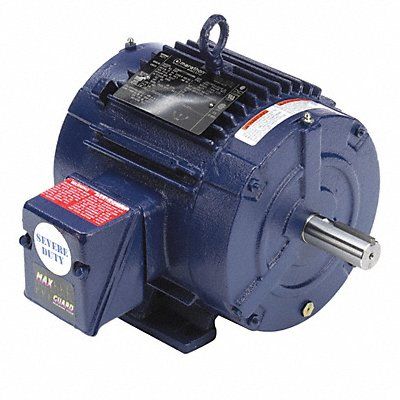

Severe Duty Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 460V AC Full Load Amps 3.5 182T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Nonventilated Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 182TTTCD6501
| Item Reference | 19RX20 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 98 |
| Length (in) | 15.82 |
| Width (in) | 12.56 |
| Height (in) | 9.38 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
