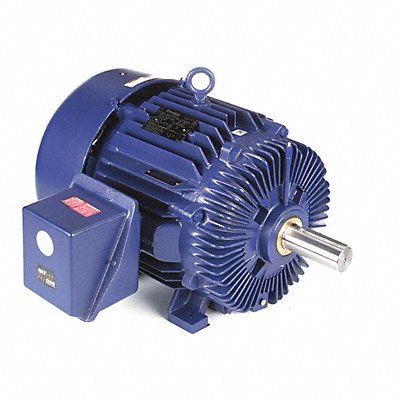

IEEE 841 Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 1 782 No of Speeds 1 Voltage 460V AC Full Load Amps 47.5 324T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 324THFCD9026
| Item Reference | 19RV49 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 710 |
| Length (in) | 37.88 |
| Width (in) | 31.88 |
| Height (in) | 24.63 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
