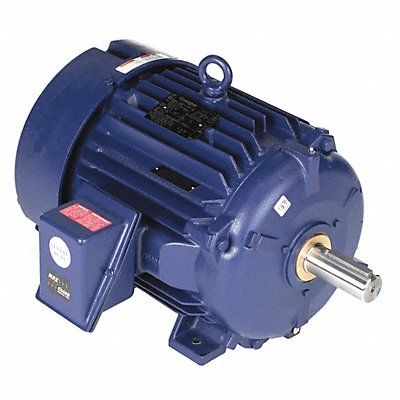

IEEE 841 Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 460V AC Full Load Amps 30.0 284T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 284THFCD9026
| Item Reference | 19RV38 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 489 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 24.51 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
