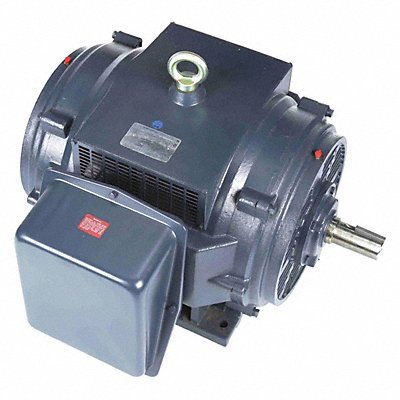

General Purpose Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 788 No of Speeds 1 Voltage 230/460V AC Full Load Amps 228.0/114.0 404TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 404TSTDCD6060
| Item Reference | 454X76 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 1308 |
| Length (in) | 42.125 |
| Width (in) | 35.039 |
| Height (in) | 32.677 |
| Harmonization Code | 8501534080 |
| Country of Origin | Mexico |
