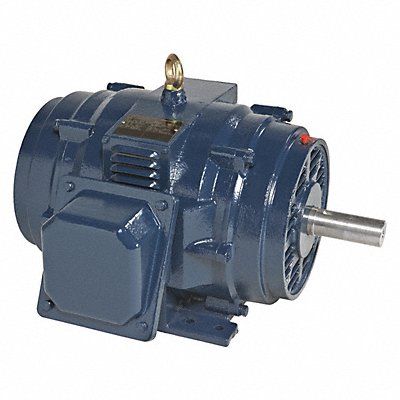

General Purpose Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 3 568 No of Speeds 1 Voltage 230/460V AC Full Load Amps 228.0/114.0 365TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 365TSTDBD6001
| Item Reference | 454X75 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 798 |
| Length (in) | 36.023 |
| Width (in) | 30.708 |
| Height (in) | 29.921 |
| Harmonization Code | 8501534080 |
| Country of Origin | Mexico |
