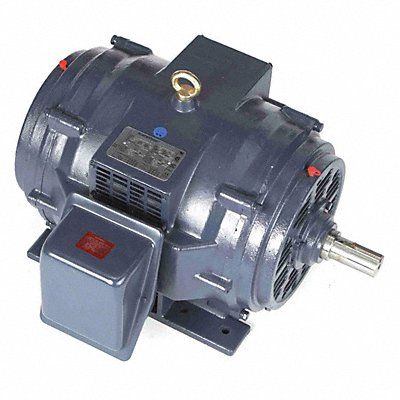

General Purpose Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 3 562 No of Speeds 1 Voltage 230/460V AC Full Load Amps 93.0/46.5 286TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 286TSTDBD6001
| Item Reference | 454X63 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 348.33 |
| Length (in) | 30.118 |
| Width (in) | 25.393 |
| Height (in) | 25 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
