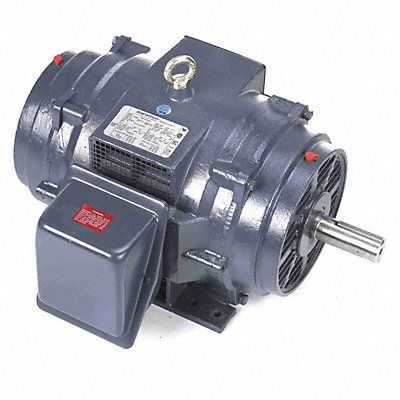

General Purpose Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 3 556 No of Speeds 1 Voltage 230/460V AC Full Load Amps 59.5/29.7 256T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 256TTDBD6001
| Item Reference | 454X57 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 231.485 |
| Length (in) | 27.559 |
| Width (in) | 24.212 |
| Height (in) | 24.409 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
