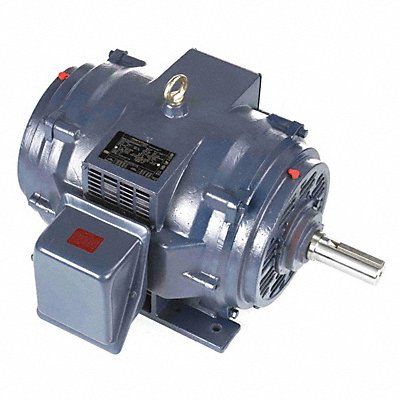

General Purpose Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 182 No of Speeds 1 Voltage 230/460V AC Full Load Amps 52.5/26.3 286T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 286TTDBD6076
| Item Reference | 454X56 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 361.558 |
| Length (in) | 31.496 |
| Width (in) | 25.393 |
| Height (in) | 25 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
