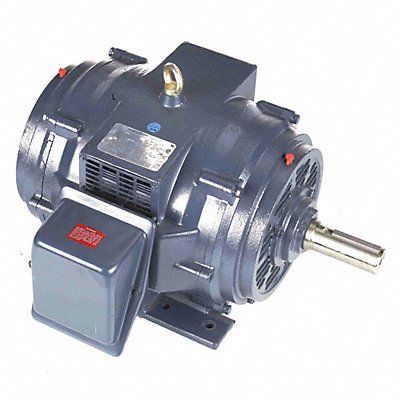

General Purpose Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 184 No of Speeds 1 Voltage 230/460V AC Full Load Amps 41.0/20.6 284T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 284TTDBD6076
| Item Reference | 454X53 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 330.693 |
| Length (in) | 30.118 |
| Width (in) | 25.393 |
| Height (in) | 25 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
