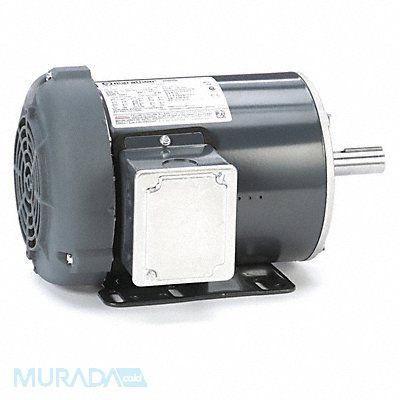

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 145 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.2-3.2/1.60 143T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 143TTFR5376
| Item Reference | 44Z743 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 28.2 |
| Length (in) | 16.6 |
| Width (in) | 10.7 |
| Height (in) | 8.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
