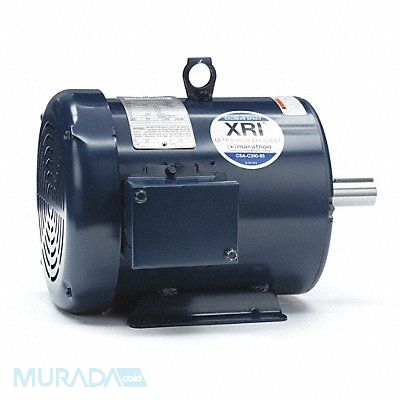

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 200V AC Full Load Amps 8.9 182T Frame Usable @ 208V No Usable @ 200V Yes Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 182TTFBD6039
| Item Reference | 44Z447 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 73.5 |
| Length (in) | 18.4 |
| Width (in) | 13.5 |
| Height (in) | 13.9 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |
