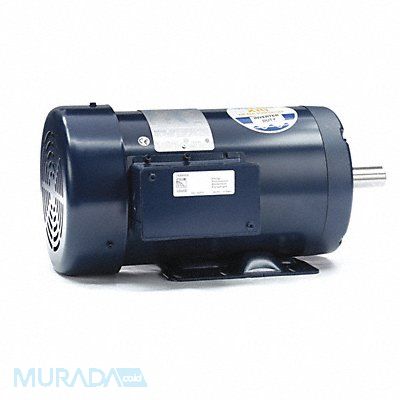

General Purpose Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 5.8/2.9 145T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 145TTFR16035
| Item Reference | 44Z435 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 49.25 |
| Length (in) | 19.9 |
| Width (in) | 10.9 |
| Height (in) | 11.4 |
| Harmonization Code | 8501513040 |
| Country of Origin | United States |
