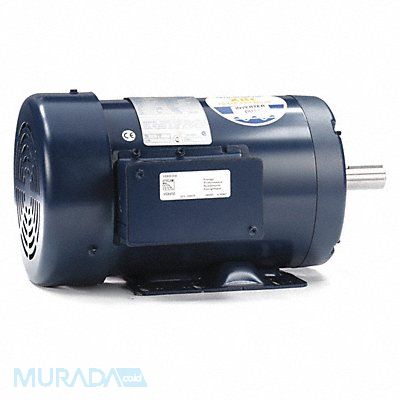

General Purpose Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 4.8/2.4 145T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 145TTFR16033
| Item Reference | 44Z422 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 45.09 |
| Length (in) | 19.9 |
| Width (in) | 11.1 |
| Height (in) | 11.2 |
| Harmonization Code | 8501513040 |
| Country of Origin | United States |
