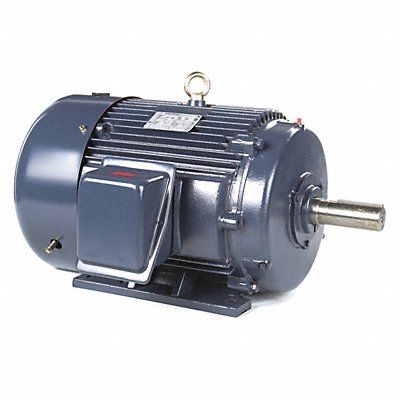

General Purpose Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 184 No of Speeds 1 Voltage 575V AC Full Load Amps 25.6 324T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 324TTFCD6080
| Item Reference | 44Z363 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 627 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 25.42 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |
