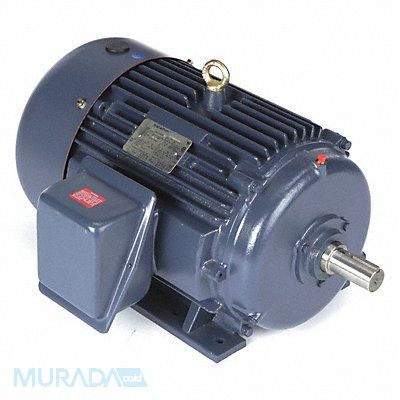

General Purpose Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 3 555 No of Speeds 1 Voltage 230/460V AC Full Load Amps 60.0/30.0 284TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 284TSTFCD6001
| Item Reference | 44Z348 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 510 |
| Length (in) | 31.25 |
| Width (in) | 22.25 |
| Height (in) | 18 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |
