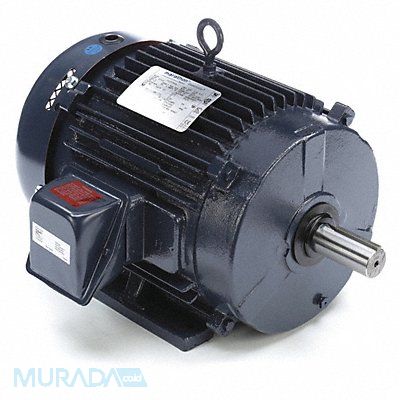

General Purpose Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 762 No of Speeds 1 Voltage 575V AC Full Load Amps 10.0 215T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 215TTFCD6030
| Item Reference | 44Z331 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 209 |
| Length (in) | 22.5 |
| Width (in) | 16.81 |
| Height (in) | 14 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |
