| Item Reference | 44P069 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 137 |
| Length (in) | 22.5 |
| Width (in) | 16.81 |
| Height (in) | 14 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |

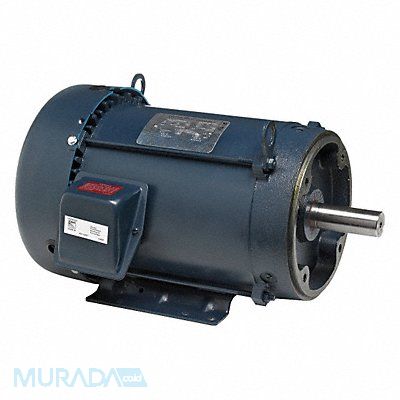

General Purpose Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 518 No of Speeds 1 Voltage 575V AC Full Load Amps 9.5 215TC Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal
