| Item Reference | 41D746 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 85 |
| Length (in) | 45 |
| Width (in) | 36 |
| Height (in) | 14.867 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

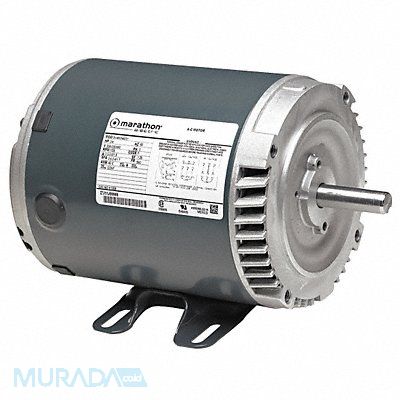

General Purpose Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 230/460V AC Full Load Amps 17.8/8.9 184TC Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal
Mfr 184TTDBD6003
