| Item Reference | 5THZ2 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 410 |
| Length (in) | 22.6 |
| Width (in) | 31.5 |
| Height (in) | 22 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

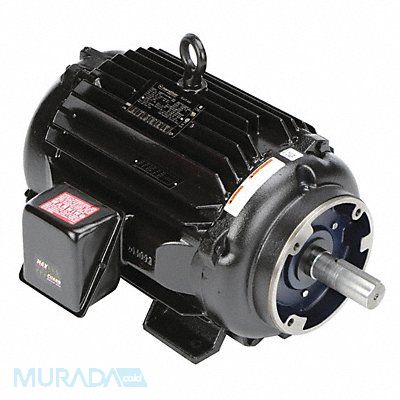

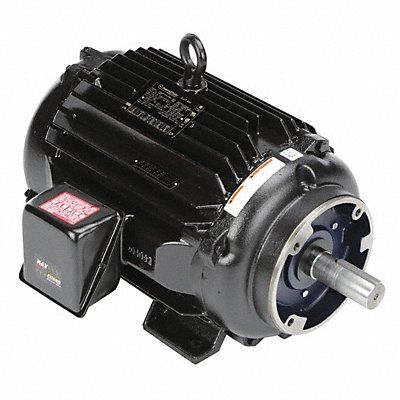

Vector Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 230/460V AC Full Load Amps 52.0/26.0 256TC Frame Torque 59.5 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 256THTNA7026
