| Item Reference | 5THZ1 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 235 |
| Length (in) | 33 |
| Width (in) | 24 |
| Height (in) | 22.86 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

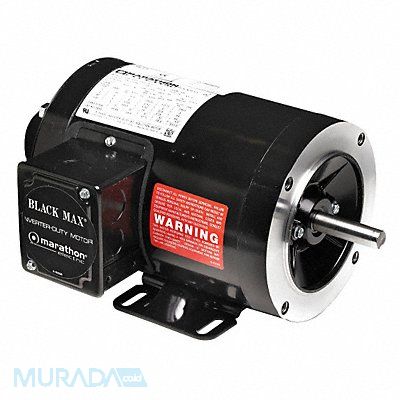

Vector Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 40.0/20.0 254TC Frame Torque 44.6 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 254THTL5726
