| Item Reference | 5THY7 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 130 |
| Length (in) | 22.8 |
| Width (in) | 16.8 |
| Height (in) | 14.6 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

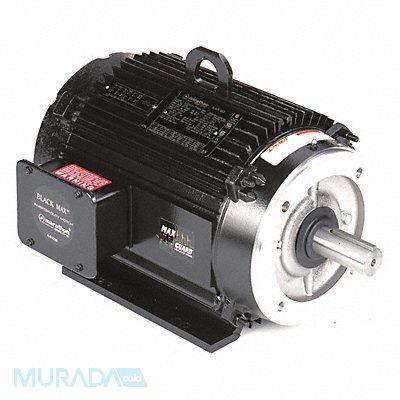

Vector Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 21.0/10.5 213TC Frame Torque 22.3 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 213THTL7726
