| Item Reference | 5THY3 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 86.55 |
| Length (in) | 22.7 |
| Width (in) | 17.4 |
| Height (in) | 15.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

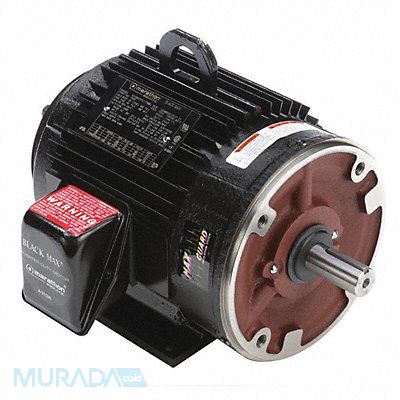

Vector Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 160 No of Speeds 1 Voltage 230/460V AC Full Load Amps 6.6/3.3 184TC Frame Torque 9 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 184THTL7776
