| Item Reference | 5THX7 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 162 |
| Length (in) | 30 |
| Width (in) | 17 |
| Height (in) | 17 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

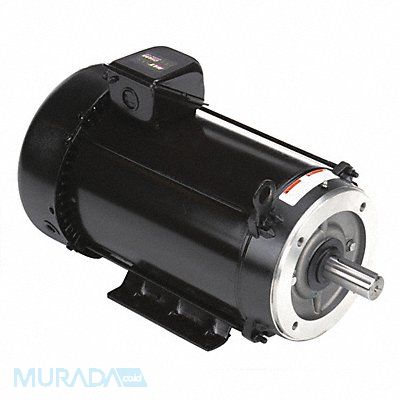

Vector Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 230/460V AC Full Load Amps 27.6/13.8 215TC Frame Torque 30 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW
