| Item Reference | 5THW7 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 17.37 |
| Length (in) | 11.4 |
| Width (in) | 7.2 |
| Height (in) | 7.7 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

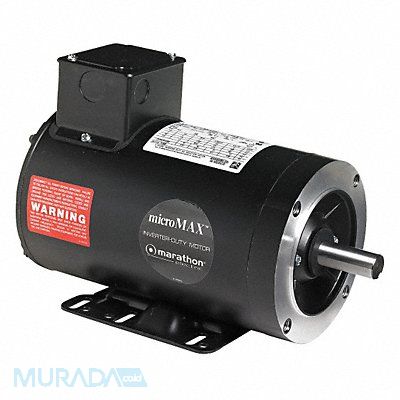

Vector Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 230V AC Full Load Amps 1.20 56C Frame Torque 1 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 056H17T2013
