| Item Reference | 46N457 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 92 |
| Length (in) | 18.31 |
| Width (in) | 13.5 |
| Height (in) | 13.44 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

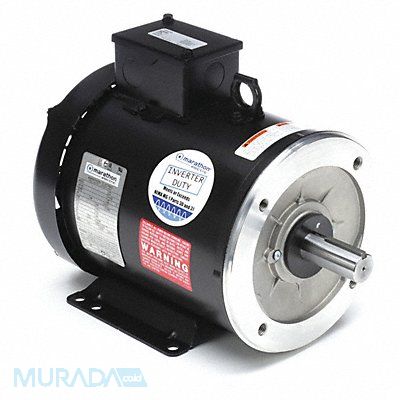

Vector Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 13.0/6.5 184TC Frame Torque 15 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 184THFW7726
