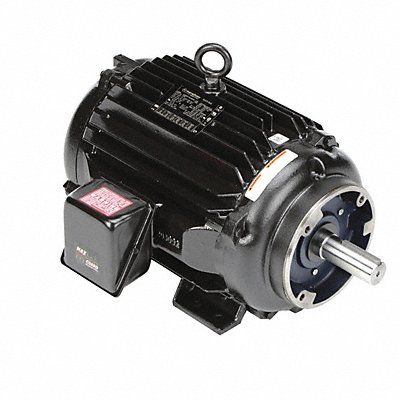

MARATHON MOTORS Vector Motor 20 HP 1770 rpm 256TC 575V, 46M720

Be the first to review this product
backorder
item
18JKK0836
Mfr 256THTNA7036
Brand
MARATHON MOTORS
Rp. 141,076,000.00
Add to Compare
item
Vector Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 575V AC Full Load Amps 20.8 256TC Frame Torque 59.5 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 256THTNA7036
More Information
Item Reference46M720
BrandMARATHON MOTORS
Weight (lb)300
Length (in)30.75
Width (in)21.71
Height (in)18
Harmonization Code8501513040
Country of OriginUnited States
Vector Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 575V AC Full Load Amps 20.8 256TC Frame Torque 59.5 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 256THTNA7036
