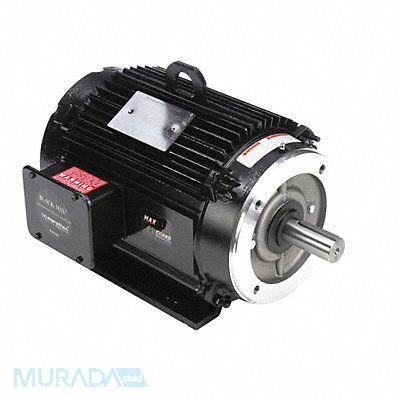

MARATHON MOTORS Motor 7 1/2 HP 1765 rpm 213TC 575V, 46M716

Be the first to review this product
backorder
item
18JKK0832
Mfr 213THTL7736
Brand
MARATHON MOTORS
Rp. 71,635,500.00
Add to Compare
item
Vector Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 575V AC Full Load Amps 8.4 213TC Frame Torque 22.3 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 213THTL7736
More Information
Item Reference46M716
BrandMARATHON MOTORS
Weight (lb)146
Length (in)22.19
Width (in)16.5
Height (in)14
Harmonization Code8501513040
Country of OriginUnited States
Vector Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 575V AC Full Load Amps 8.4 213TC Frame Torque 22.3 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 213THTL7736
