| Item Reference | 45KF29 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 96 |
| Length (in) | 20.31 |
| Width (in) | 14.94 |
| Height (in) | 13 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

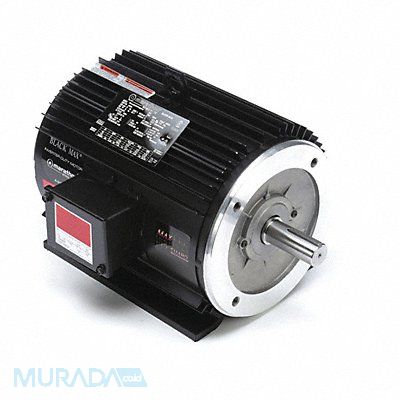

Vector Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 575V AC Full Load Amps 5.4 184TC Frame Torque 14.9 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 184THTY7736
