| Item Reference | 15G107 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 38.55 |
| Length (in) | 17.3 |
| Width (in) | 10.6 |
| Height (in) | 10.4 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

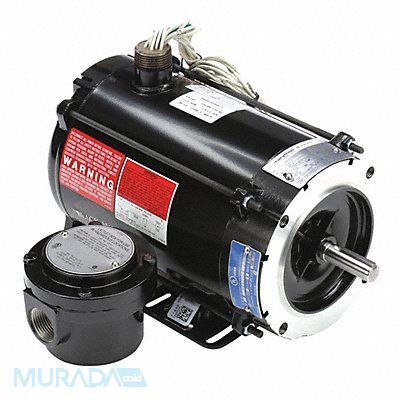

Vector Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.4/1.20 56C Frame Torque 2.25 ft-lb Max Speed 3 600 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 056H17E5304
