| Item Reference | 26WC67 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 117 |
| Length (in) | 30.5 |
| Width (in) | 16.81 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

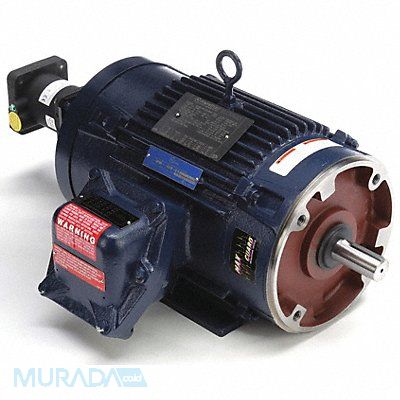

Vector Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.2/4.1 182TC Frame Max Speed 3 600 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated
