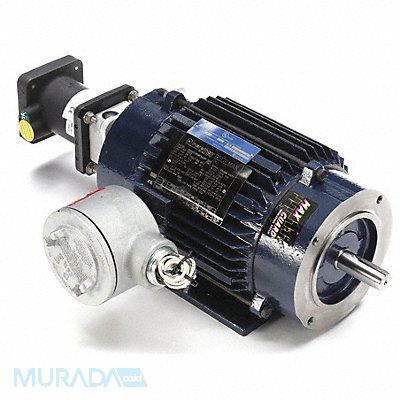

| Item Reference | 26WC66 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 90 |
| Length (in) | 29 |
| Width (in) | 13.25 |
| Height (in) | 12 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
Vector Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 5.8/2.9 145TC Frame Max Speed 3 600 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 90 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated
