| Item Reference | 26VU10 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 2117 |
| Length (in) | 64 |
| Width (in) | 42 |
| Height (in) | 33.98 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

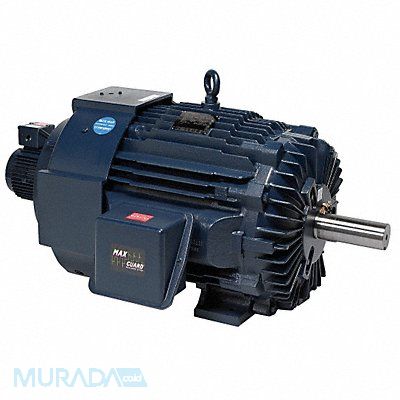

Vector Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 190 No of Speeds 1 Voltage 230/460V AC Full Load Amps 250.0/125.0 444TC Frame Max Speed 1 200 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 90 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
