| Item Reference | 26VT88 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 371 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 21.89 |
| Harmonization Code | 8501528040 |
| Country of Origin | United States |

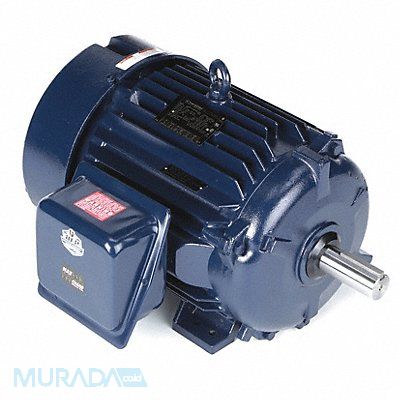

Vector Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 776 No of Speeds 1 Voltage 230/460V AC Full Load Amps 77.0/38.5 286T Frame Max Speed 1 800 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
