| Item Reference | 26VT87 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 470 |
| Length (in) | 44.88 |
| Width (in) | 26 |
| Height (in) | 19.37 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

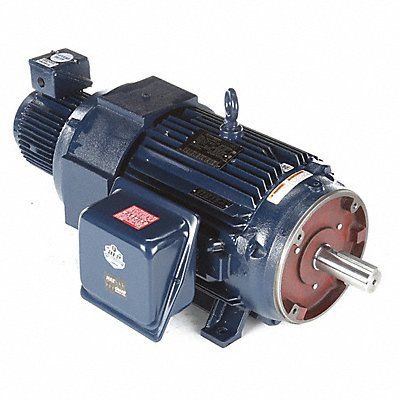

Vector Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 63.0/31.5 284TC Frame Max Speed 1 800 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 90 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
