| Item Reference | 26VT83 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 377 |
| Length (in) | 31.25 |
| Width (in) | 22.25 |
| Height (in) | 18 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

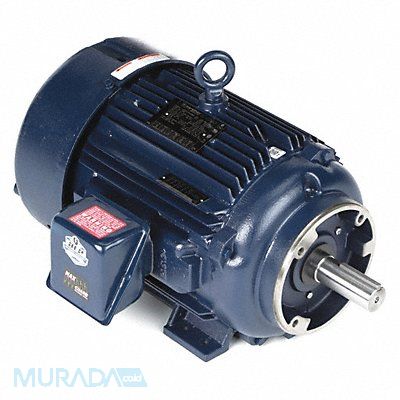

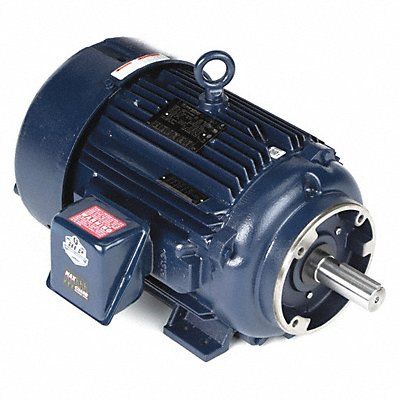

Vector Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 230/460V AC Full Load Amps 52.0/26.0 256TC Frame Max Speed 1 800 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 90 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
Mfr 256THFNA8038
