| Item Reference | 26VT77 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 192 |
| Length (in) | 26.5 |
| Width (in) | 18 |
| Height (in) | 14.38 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

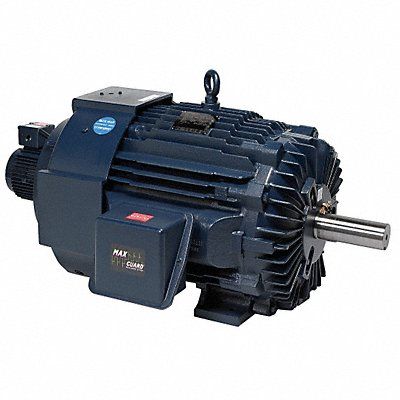

Vector Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 19.4/9.7 213TC Frame Max Speed 4 000 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
Mfr 213THFS8028
