| Item Reference | 491J91 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 230 |
| Length (in) | 28 |
| Width (in) | 21.4 |
| Height (in) | 22 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

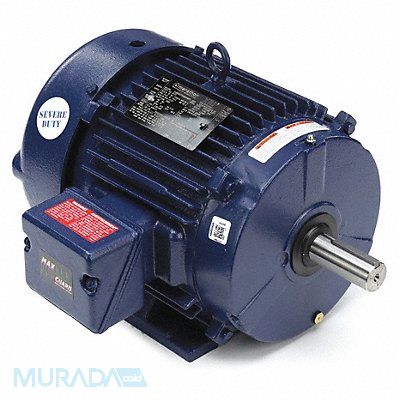

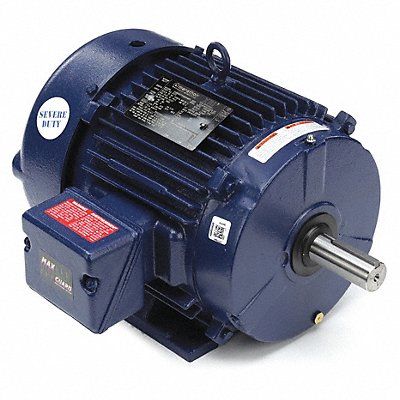

Severe Duty Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 762 No of Speeds 1 Voltage 230/460V AC Full Load Amps 25.0/12.5 215T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Ins. Class H Hazardous Location Class 1 A B C D Temp Code T2B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B Motor Shaft Rotation CW/CCW
Mfr 215TTFCD6527
