| Item Reference | 19RY19 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 1330 |
| Length (in) | 44.88 |
| Width (in) | 39.25 |
| Height (in) | 28.89 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |

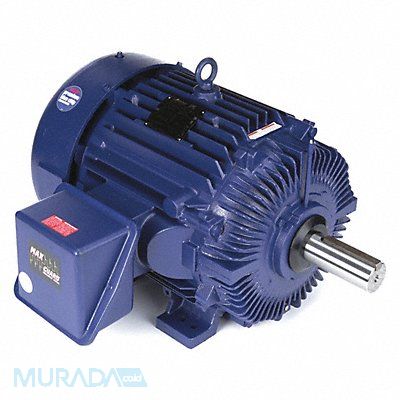

Severe Duty Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 785 No of Speeds 1 Voltage 460V AC Full Load Amps 113.0 405T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Ins. Class H Hazardous Location Class 1 A B C D Temp Code T2B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B Motor Shaft Rotation CW/CCW
Mfr 405TTFCD6536
