| Item Reference | 19RX90 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 696 |
| Length (in) | 37.88 |
| Width (in) | 31.88 |
| Height (in) | 24.39 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |

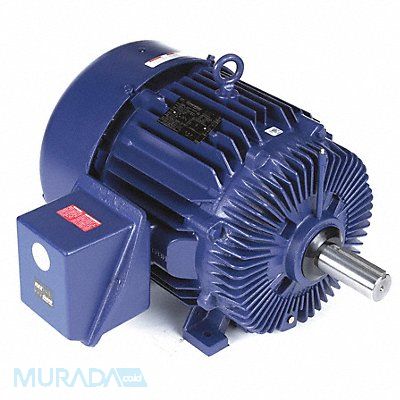

Severe Duty Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 184 No of Speeds 1 Voltage 460V AC Full Load Amps 32.0 324T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Ins. Class H Hazardous Location Class 1 A B C D Temp Code T2B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B Motor Shaft Rotation CW/CCW
