| Item Reference | 39P309 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 76 |
| Length (in) | 15.81 |
| Width (in) | 14.19 |
| Height (in) | 9.38 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

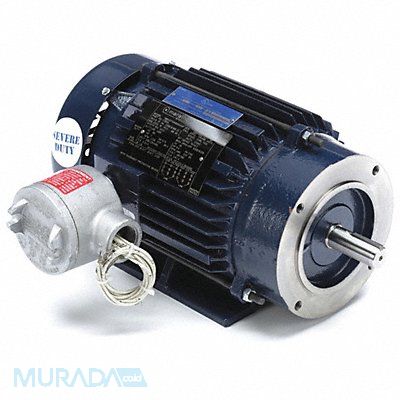

Hazardous Location Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 735 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.0-3.0/1.50 143TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class F Hazardous Location Class 1 D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B
Mfr 143TTGN6551
